Positioning real sensors

TopicId036

Positioning real sensors is an essential operation that must be performed when configuring the system for the first time. There is no need to change it later, except in particular cases.

Only experienced personnel who is familiar with the GPS system may perform the first configuration or a configuration change.

Positioning real sensors consists in the graphic positioning of the six real sensors on the six corresponding points on the photo.

The six real sensors can be identified on the photo by six circles, indicated by the arrows on the image.

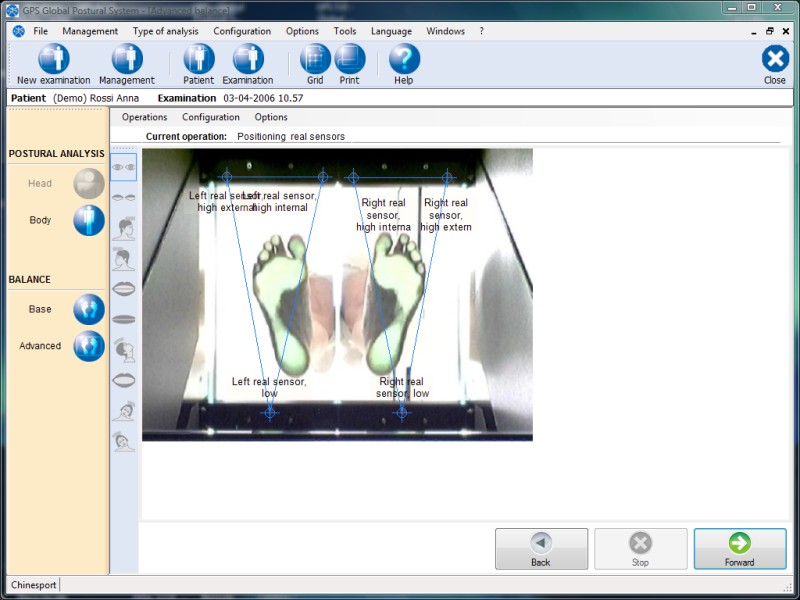

Positioning the real sensors consists in dragging the six graphical elements with the mouse, as shown below:

See also:

Sample video: positioning real sensors
