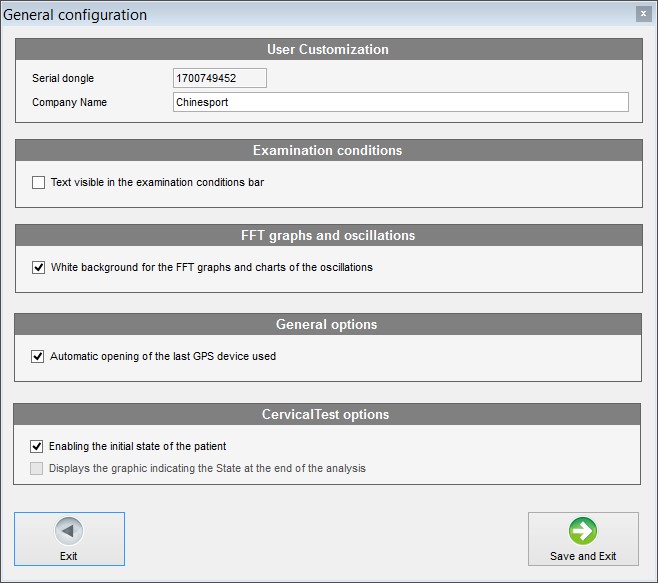

General configuration
TopicId122
General configuration parameters can be set in this window.
The options can be enabled or disabled with a mouse click; when an option is enabled, a check mark √ appears next to it.
User customization
Serial dongle
It is the dongle's serial number. The number cannot be modified.
Company Name
The user company name can be entered in this field. It will appear in the printouts and in the status bar of the main window.
Examination conditions
Text visible in the examination conditions bar
If this option is enabled, the texts describing examination conditions will be displayed in the relevant bars for the types of analysis that require them.
The types of analysis that use examination conditions are:
Example of examination conditions bar for the PoData analysis type when the option is enabled:
FFT Graphs and oscillations
White background for FFT graphs and oscillation graphs
If this option is enabled, FFT graphs and oscillation graphs are displayed on a white background.
The graphs concerned are:

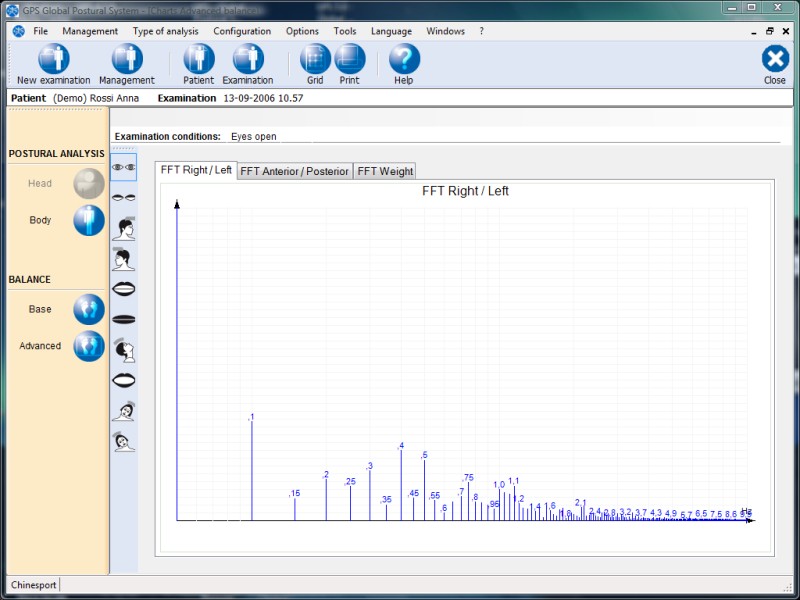

Example of FFT graph appearance when the option is enabled:
General options
Automatic opening of the last GPS device used
If this option is enabled, when the GPS is launched the last window used is opened automatically.
The last window used means a main window for a GPS device, such as the main window for the PoData.
This option is enabled automatically when the GPS is launched for the first time after installation, provided the number of GPS devices enabled by the dongle is equal to 1.
CervicalTest options
Enabling the patient's initial status
If this option is enabled, the CervicalTest analysis procedure will also include saving the values related to the patient's initial status.
Display the graph line that indicates the status at the end of the analysis
If this option is enabled, the CervicalTest analysis will also display a graph line for each of the three measurements related to the patient's final status
